Overview

------------------------------------------------------------------------------------------------------------------
DP/S – Spring Push Actuation
The DP range of spring push probes is the workhorse of the gauging industry. Very high resolution excellent linearity and high data speeds is coupled with outstanding measurement repeatability, Long life bearings and IP65 sealing ensures that the probes maintain their performance for millions of measurements.

  • 0.5,1,2,5,10 and 20 mm measuring ranges
  • Accuracy better than 0.1 µm
  • Repeatability better than 0.05 µm
  • Resolution better than 0.01 µm
  • Range of tips available
  • Spring actuation
  • Standard tip force of 0.7N (other options available)
  • IP65 sealing (fully sealed options available)
  • Excellent side load capability

DP/P – Pneumatic Push Actuation
Pneumatic transducers are ideal for use in automatic gauging applications or for accessing details that would be difcult or impossible to reach with spring push transducers. The standard range of Pneumatic Probes comes with IP65 sealing to ensure a long working life in wet or oily environments.

  • 2,5,10 and 20 mm measuring ranges
  • Accuracy better than 0.1 µm
  • Resolution better than 0.01 µm
  • Repeatability better than 0.05 µm
  • Range of tips available
  • Pneumatic actuation
  • Tip force of 0.7 N (with 0.4 bar of pressure)
  • IP65 sealing (fully sealed options available)
  • Excellent sideload capability

DJ/P –Pneumatic Push Actuation
Jet ‘J Type' probes are like pneumatic probes except that actuation is by an inbuilt piston. High tip forces are available but as air is vented through a port close to the front of the probe, they have a lower IP rating. These probes will continue to operate even if the gaiter becomes punctured.
  • 2,5,10,12,20 mm measuring ranges
  • Same performance as Pneumatic Push
  • Actuation by internal piston not the gaiter



Spring Probes Spec.
Pneumatic Probes Spec.

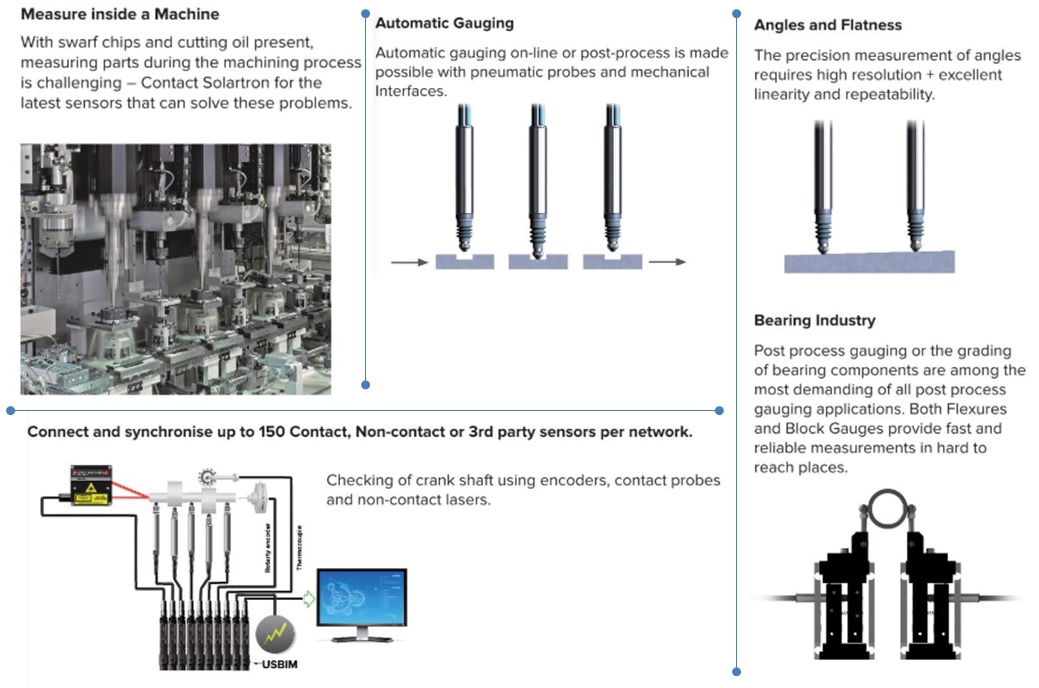

Applications
Brand
SOLARTRON MATEROLOGY AT A GLANCE
Solartron Metrology is a world leader in the design and manufacture of highly accurate, precise and rugged digital and ananlogue linear disolacement and dimensional gauging probes including LVDT displacement and gauging probes.
These displacement products are cpmplimented by a range of precose block gauges, flexure gauges and non-contact sensors.
This combined with the high speed, high resolution and accurate Orbit Didital Measurement Network or specialist instrumentation will solve your measurement problem.
