OVERVIEW
Solartron’s specialist gauging and measurement transducers are for applications where the standard pencil style probe will not fit.DK - Block Gauge

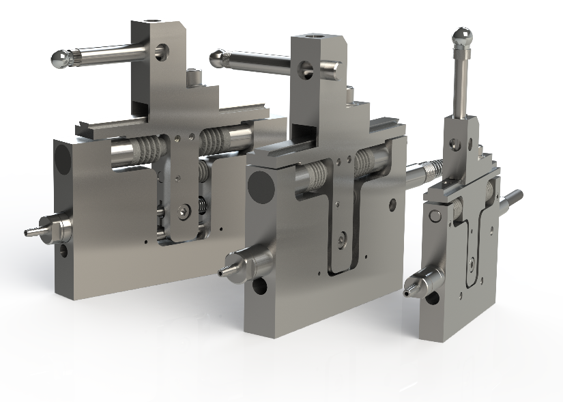

Solartron’s Block Gauges makes precision measurements of bores and cavities a simple and reliable process. More generally, the use of these devices is recommended in applications where space and access is limited and where the use of axial probes is not possible. The 2 mm Block Gauge is only 8 mm wide.

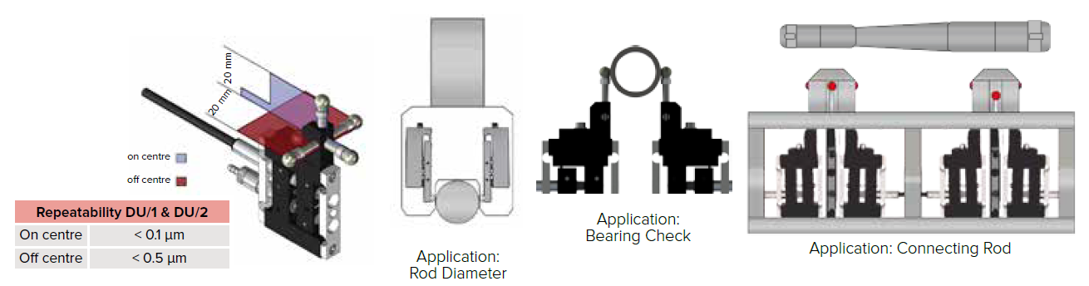

The Block Gauges offer unrivalled ruggedness, accuracy and repeatability. All three units are extremely versatile and provide datum surfaces and all the adjustments required for precision gauging applications. Block Gauges have robust precision linear bearings with minimal clearance, which limits unmeasured movements maintaining good repeatability even when the contact tip is mounted off centre.
 |
|
Parallel Flexures with high resolution and excellent repeatability make Solartron’s Flexure Transducers the first choice for high speed precision gauging. With no sliding moving parts, the flexure will maintain performance for millions of cycles and are virtually free from hysteresis.
Flexures can be mounted such that there is little or no stress through the gauge line enabling precision profiling of moving materials such as rotating shafts, brake discs etc. With resolution better than 0.05 μm at speeds up to 3906 readings per second, the flexure with Orbit® provides an excellent dynamic solution.
|
 |
Block Guage Ordering Guide
Flexures Ordering Guide

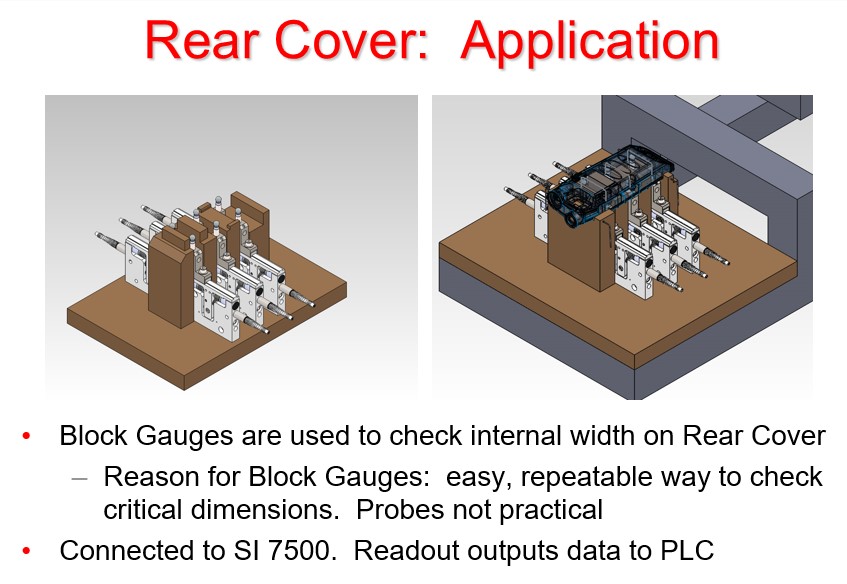

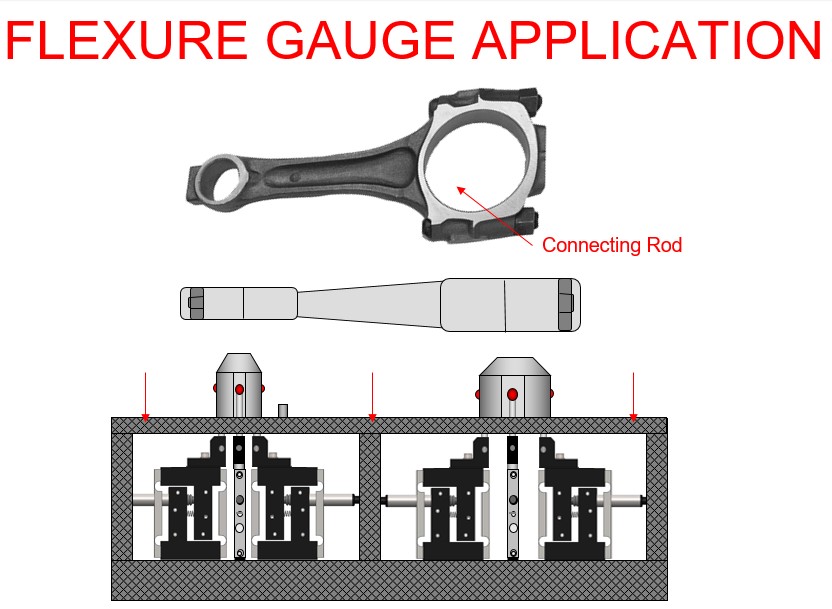

Applications
Videos
(Check OD and ID simultaneously)
(Check ID automatically)
(Check ID automatically)
