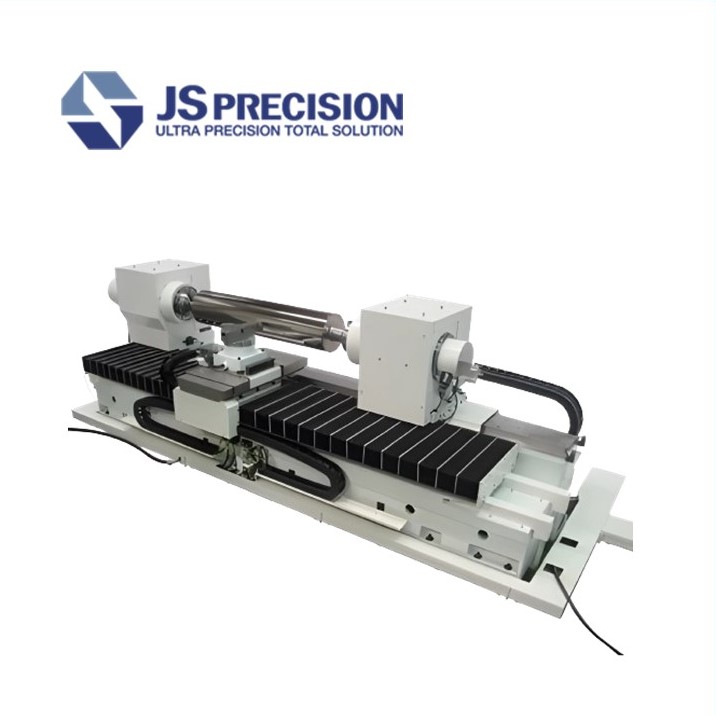

Precision Roll Machine
OVERVIEW
--------------------------------------------------------------------------------------
Base is cast iron and leveling block a hydrostatic bearings design.
This equipment is a special rolling wheel machine that uses a single-point diamond cutter to perform ultra-precision micro-structural machining on large rolling wheel surface for the purpose of achieving ultra-precision level.
The maximum weight of the workpiece that can be machined is 1000kg.
Roll diameter diameter 210~600mm.
Roll maximum length machining length 500~2,000mm
Technical support--------------------------------------------------------------------------------------
DEMO machine: Provide verification testing & OEM support.
After-sales service
--------------------------------------------------------------------------------------
Provide zero-time difference after-sales service
Applications
--------------------------------------------------------------------------------------
Liquid-Crystal Display,LCD、Smartphone.TabletBrightness Enhancement Film、Projection curtain、Privacy Filter、Magnifying glass lens
Curved backing module、Vcut 、FLY Cut
Specification
Roll weight |
Max.1000kg |
Roll diameter |
210~600mm |
Spindle Bearing |
Hydrostatic Bearing |
Bed Materia |
Cast iron |
Rotational Speed |
300rpm |
Positioning accuracy |
≤ ± 2 arcsec |
Controller resolution |
0.0018 arcsec |
Repeatability |
≤ ± 0.2 arcse |
Example
| Prism |
 |
Wavy pattern
|
 |
| Grating |  |
| Compound prism |  |
Square pyramid prism |
 |
