Ultrasonic Deburring and Cleaning System



Overview
--------------------------------------------------------------------------------
Manual universal ultrasonic cleaning device with enhanced cavitation system.
Removes and cleans various burrs from metals, plastics, composite materials, etc., using powerful ultrasonic waves.

Materials
----------------------------------------------------------------------
Various metals, Plastics, Ceramics, and their compound materials

Cleaning Liquid
------------------------------------------------------------------------------
Pure water 、City water、Hydrocarbon solvent-Stype（improved explosion resistance）

As amount of gas contained in liquid falls below a certain level, the type of cavity
generated by ultrasound in the liquid changes from gaseous nebula type tospherically nebula type.
This makes stronger shock waves. When the cavity generated,
the positive shockwaves occur outside of the them.
When the cavity disappeared,negative shockwaves occur inside of them. This phenomenon is repeated 20,000 times per second.
Such continuous shock waves cause fatigue failureand deburr.
This is the principle of ultrasonic deburring. (Please refer to the pictures.)

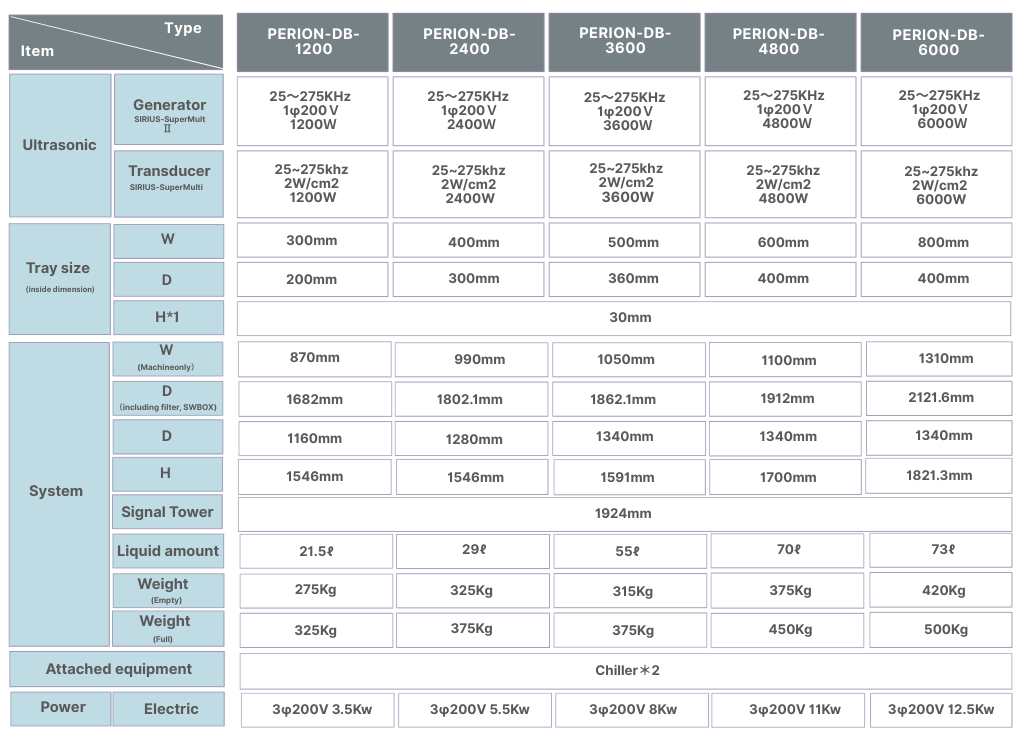

Specification

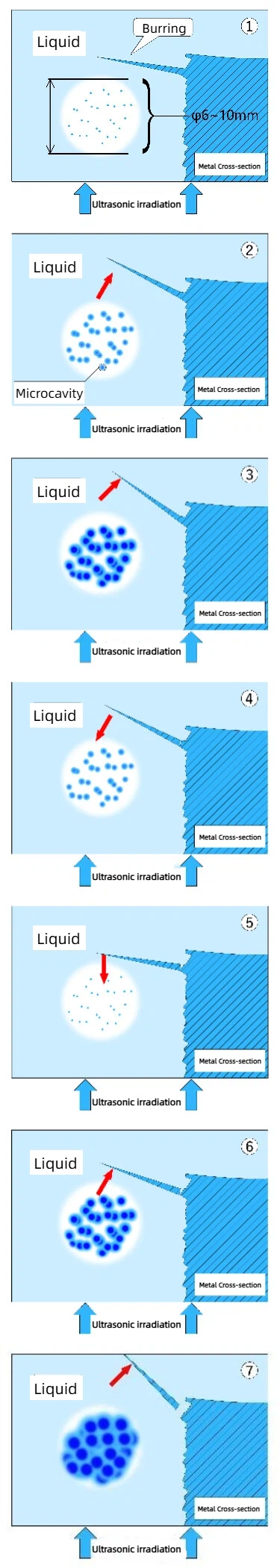

Deburring Principle

As amount of gas contained in liquid falls below a certain level, the type of cavity
generated by ultrasound in the liquid changes from gaseous nebula type tospherically nebula type.
This makes stronger shock waves. When the cavity generated,
the positive shockwaves occur outside of the them.
When the cavity disappeared,negative shockwaves occur inside of them. This phenomenon is repeated 20,000 times per second.
Such continuous shock waves cause fatigue failureand deburr.
This is the principle of ultrasonic deburring. (Please refer to the pictures.)

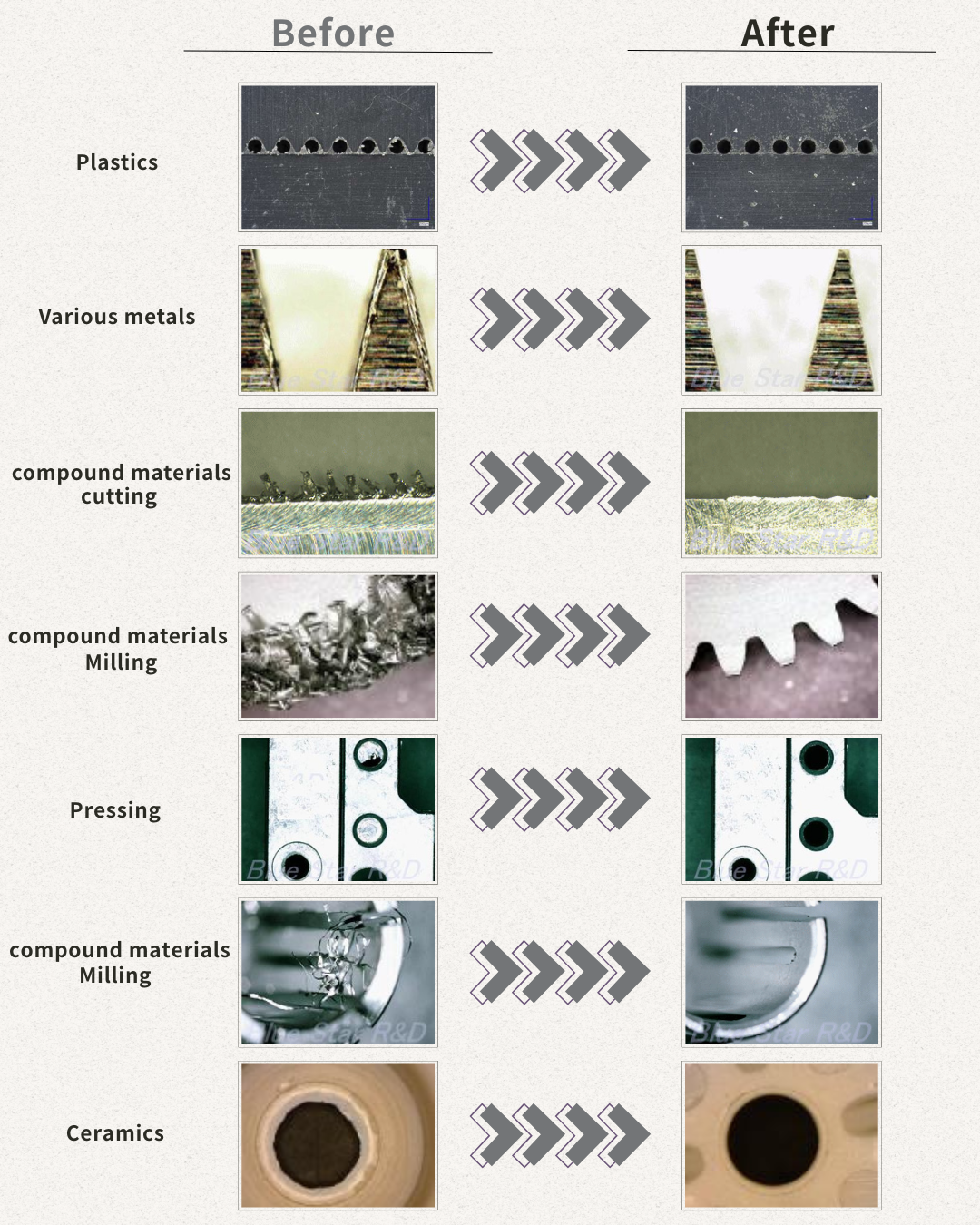

Practices
