Overview

DT/S – Spring Push Actuation (Feather Touch)

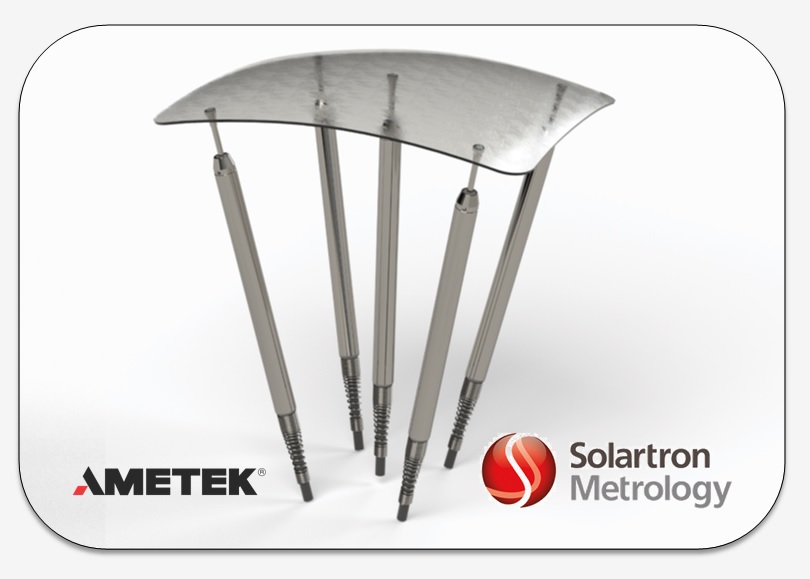

Feather Touch transducers have been designed specially to gauge or measure delicate surfaces such as car windscreens, pharmaceutical bottles, electro-mechanical components and plastic parts. A traditional transducer exerts a tip force of approximately 0.7 N, the Feather Touch exerts a mere 0.18 N when used in the horizontal position. This reduction is achieved by replacing the gaiter with a close tolerance gland.


Feather touch Low tip force of 0.18N (options available) 2,5,10,20 & 30 mm measuring ranges Accuracy better than 0.1 µm Resolution better than 0.01 µm Repeatability better than 0.05 µm Range of tips available Spring actuation IP50 sealing Excellent sideload capability

DT/P – Pneumatic Push Actuation (Feather Touch)
Feather Touch transducers have been designed especially to gauge or measure delicate surfaces such as car windscreens, pharmaceutical bottles, electro-mechanical components and plastic parts. Where as a traditional transducer exerts a tip force of approximately 0.7 N, the Feather Touch exerts a mere 0.18 N when used in the horizontal position. This reduction is achieved by replacing the gaiter with a close tolerance gland. Despite the low volume of air flow the bearing is constantly purged, avoiding the build up of dust.

Feather touch Low tip force of 0.18N (options available) 2,5,10,20 & 30 mm measuring ranges Accuracy better than 0.1 µm Resolution better than 0.01 µm Repeatability better than 0.05 µm Range of tips available Pneumatic actuation IP50 sealing Excellent sideload capability

DW/S – Spring Push

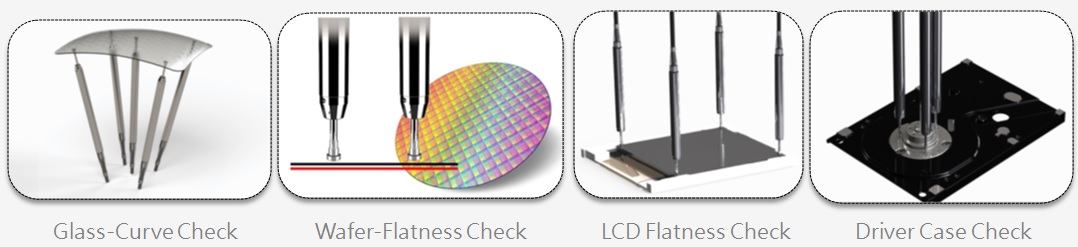

The Ultra Feather Touch probe has so light a tip force, it is a viable alternative to a non contact sensor in many applications. With various tips in ruby and nylon the UFT is already being used to check glass, rubber, semiconductor wafers and other delicate materials.


Ultra Low tip force as low as 0.03 to 0.06N 10 mm measuring range Accuracy better than 0.1 µm Resolution better than 0.01 µm Repeatability better than 0.05 µm Nylon and Ruby tips available Spring actuation IP50 sealing

DW/P – Pneumatic Push
The Ultra Feather Touch probe has so light a tip force, it is a viable alternative to a non contact sensor in many applications. With various tips in ruby and nylon the UFT is already being used to check glass, rubber, semiconductor wafers and other delicate materials.


Ultra Low tip force as low as 0.03 to 0.06N 10 mm measuring range Accuracy better than 0.1 µm Resolution better than 0.01 µm Repeatability better than 0.05 µm Nylon and Ruby tips available Pneumatic actuation IP50 sealing
