Overview

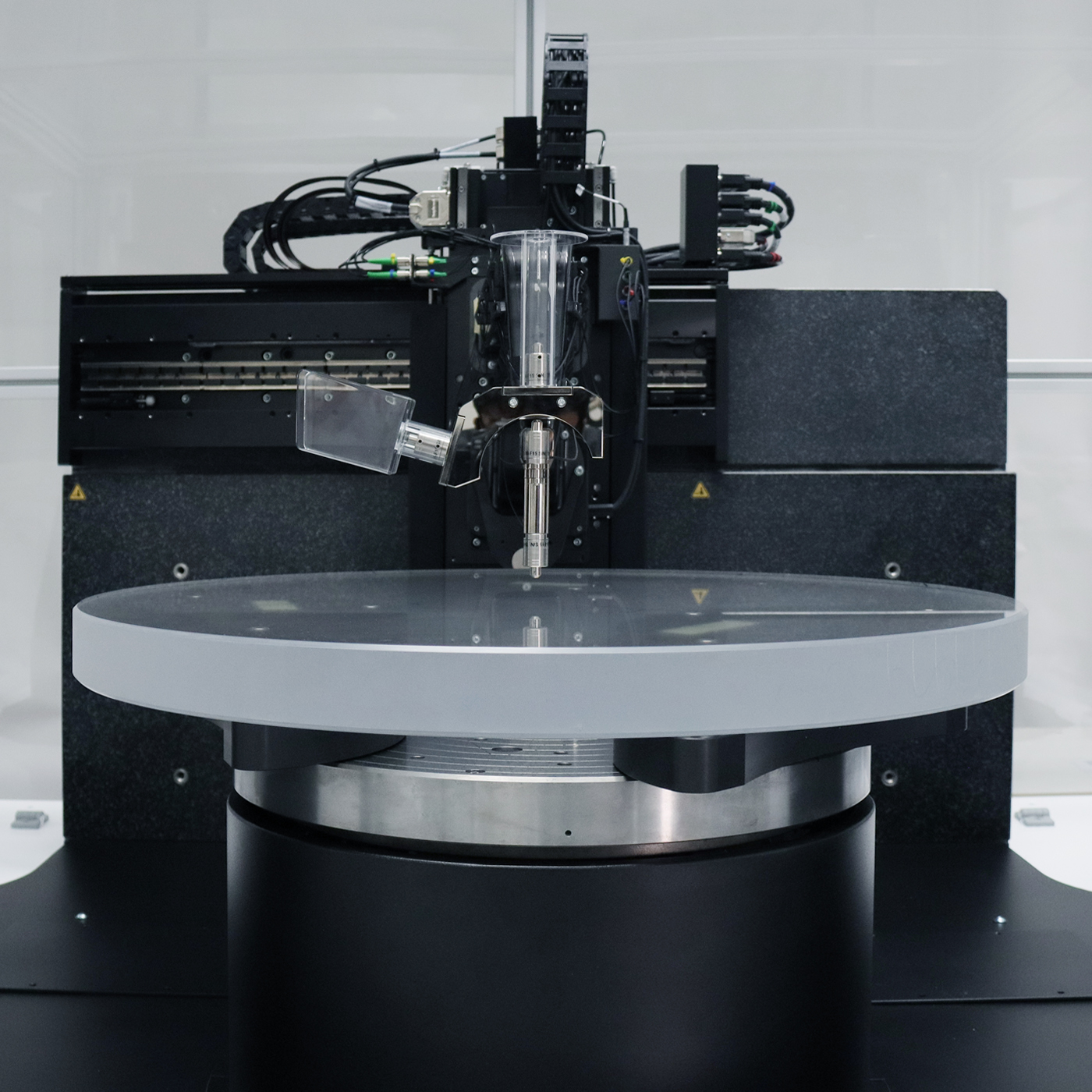

The LuphoScan 850 HD is the new revolutionary measurement technology after LuphoScan 260/420 HD rolled out. Also, the world’s most versatile, non-contact 3D form measurement platform for advanced large diameter optical surfaces. The LuphoScan 850 HD performs ultra-precision non-contact 3D surface form measurement of rotationally symmetric surfaces (optics) such as aspheric lenses, spheres, flats and slight freeform. Key benefits of the equipment are fast measurement speeds and high flexibility with regard to uncommon surface shapes (e.g. flat apexes or profiles with points of inflection). Additionally, the LuphoScan 850 HD is capable of measurement for almost every material - Transparent, specular, opaque, polished or ground.The best advantage of this eqipment
- Class-leading measurement flexibility - From 5 mm up to 850 mm (dia.) x 210 mm (height)
- Large work load - Up to 350 kg
- Highly accurate - Capable of accurate and repeatable form error measurements to < λ/20 (PV99) and <5 nm RMS*
- High data density - Data density up to 6 million data points for accurate analysis of mid-spatials at large diameters
- Freeform measurement - Up to ±8 degs for tangential slopes (radial slopes 90 degs)
