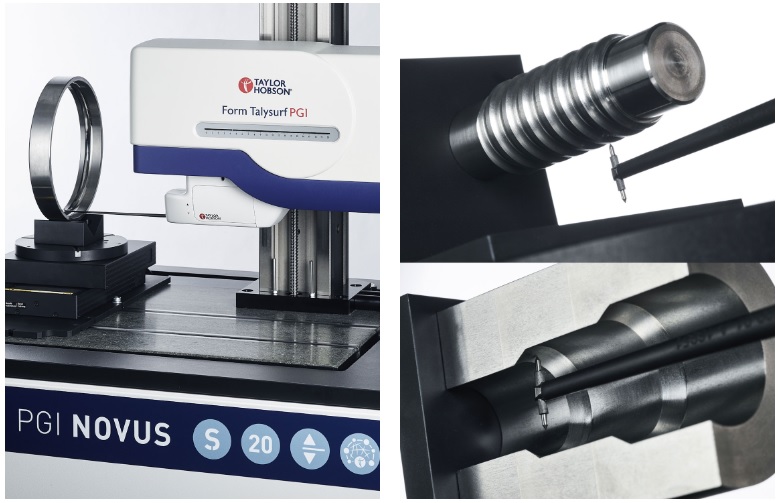

Form Talysurf® PGI NOVUS
Advanced system for surface finish, contour, 3D and diameter measurement
At the heart of the new Form Talysurf® PGI NOVUS is a ground-breaking dual bias gauge.
The NOVUS gauge provides the ability to measure diameter, included angle, surface finish in a normal and inverted direction with the same speed and accuracy. Through this development, Taylor Hobson has addressed challenges faced day-to-day by bearings, injectors and precision component manufacturers.

Key benefits:
  • Automated force control
  • Automatic lift-lower
  • Diameter & angle capability

Metrology 4.0 - Smart Software
Metrology 4.0 delivers a simple, intuitive interface with virtual display and real time control. The state-of-the-art point and move axis control function (SMART Move)delivers precise positioning and measurement with ease.

Key benefits:
  • Virtual display
  • Variable programming
  • Part Co-ordinate system (PCS)

Designed to meet your individual requirements
The unique options support high accuracy measurements in all environments from shop floor to laboratory. Contact us for more details.





Specification
Applications
  • Ball screw axial measurement - both sides for PCD

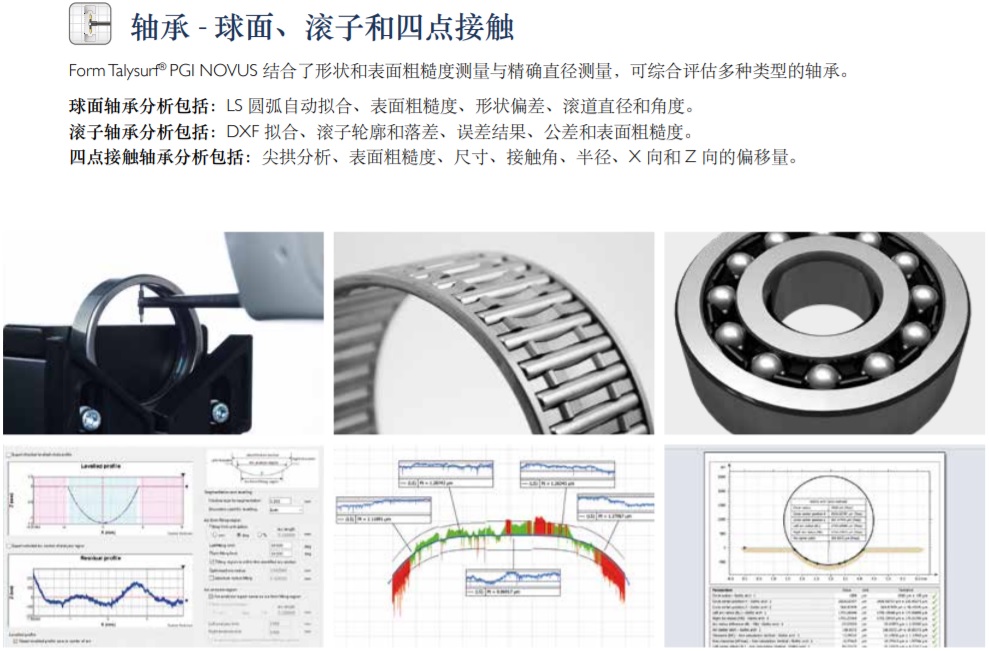

  • Bearings - spherical, roller and four-point contact
  • Gears - involute form
  • Fuel injectors - straightness and seat angle

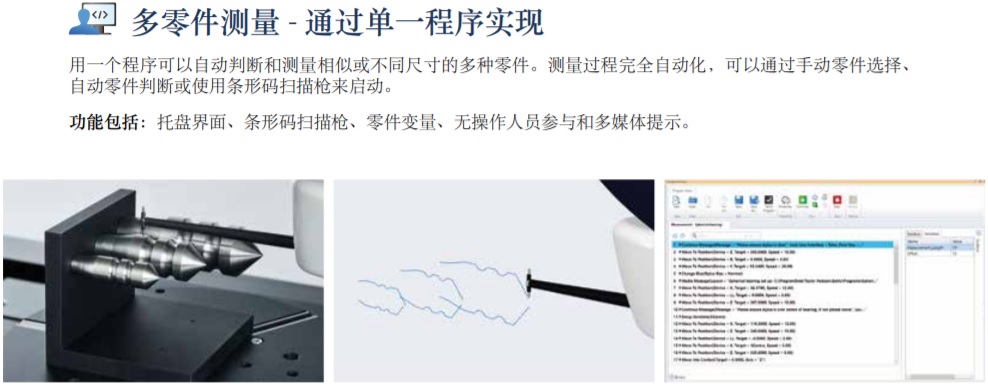

  • Multi-part measurement - using a single program
